Rumah > Produk> Pengontrol ECU> 11383470 Controller ECU for EC210D Excavator

11383470 Controller ECU for EC210D Excavator

11383470 Controller ECU for EC210D Excavator
11383470 Controller ECU for EC210D Excavator 11383470 Controller ECU for EC210D Excavator
Informasi Dasar
Tempat asal: Cina
Nama merek: Jiajue
Nomor model: EC210D
Kuantitas min Order: 1 buah
Harga: $800/pc
Kemasan rincian: 11383470 Pengendali ECU untuk Ekskavator EC210D Dikemas dalam kemasan standar ekspor sesuai kebutuha
Waktu pengiriman: 1-5 hari kerja
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union,
Menyediakan kemampuan: 100 buah/bulan
Harga terbaik Hubungi sekarang
Informasi Detail
Nama Produk: 11383470 ECU Pengontrol untuk Ekskavator EC210D Bahan: Baja
Tempat asal: Guangdong, Tiongkok MOQ: 1
OEM: Mendukung
Menyoroti:

ECU controller for EC210D excavator

,

Excavator controller ECU replacement

,

EC210D excavator ECU with warranty

Deskripsi Produk

Controller ECU for EC210D Excavator
Part Number: 11383470 - High-quality replacement controller ECU specifically designed for EC210D excavators.
Product Specifications
SpecificationDetails
Product NameController ECU
Part Number11383470
Brand NameJIAJUE
ModelEC210D
ConditionNew
AvailabilityRich Stock
Approximate Weight2KG
Size (per unit)20cm x 20cm x 8cm
Delivery TimeUsually delivered within 1-3 days after payment
Product Images

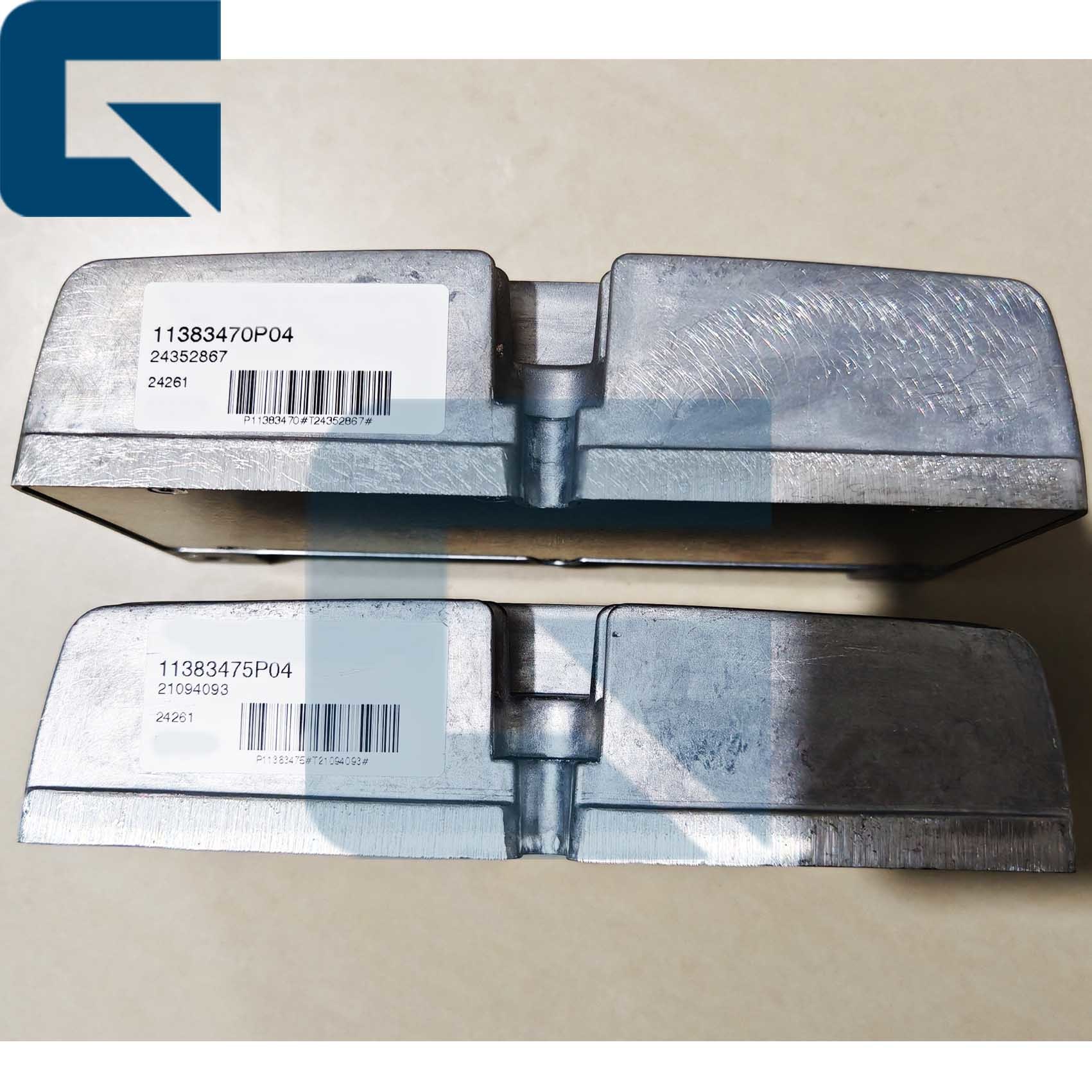

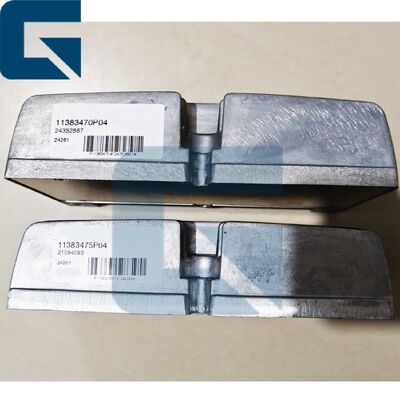

11383470 Controller ECU for EC210D Excavator 0 11383470 Controller ECU for EC210D Excavator 1
Related Products
11383470 Controller ECU for EC210D Excavator 2
Frequently Asked Questions
Installation Time for ECM
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
  • Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
Identifying Faulty ECM
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
Payment Methods
We accept T/T, L/C, PayPal, and other payment methods.
Stock Availability
Rich stock available for immediate shipment.
Order Tracking
When goods ship, we provide tracking numbers. For sea or air freight, we supply the bill of lading.
Step-by-Step Testing Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages.
  6. Functional Tests: Perform tests to activate components or simulate sensor inputs.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
