Name: VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts
Brand: GUANGZHOU JIAJUE TRADING CO.,LTD
SKU: D13K
Price: 50,000,012.00 USD
Availability: InStock

Informasi Detail

Nomor Bagian:

BUMDes24290494

MOQ:

Menyoroti:

D13K diesel fuel injector

VOE24290494 fuel injector

Diesel engine parts injector

Deskripsi Produk

VOE24290494 Diesel Fuel Injector for D13K Engine

High-performance diesel fuel injector specifically designed for D13K engine applications, ensuring optimal fuel delivery and engine performance.

Product Specifications

Product Name	Fuel Injector
Part Number	VOE24290494
Brand Name	JIAJUE
Model	D13K
Availability	Rich Stock
Approximate Weight	2KG
Size (per unit)	20cm x 5cm x 8cm
Delivery Methods	DHL FedEx TNT UPS
Warranty	3 months
Shipment	Dispatched within 24-48 hours

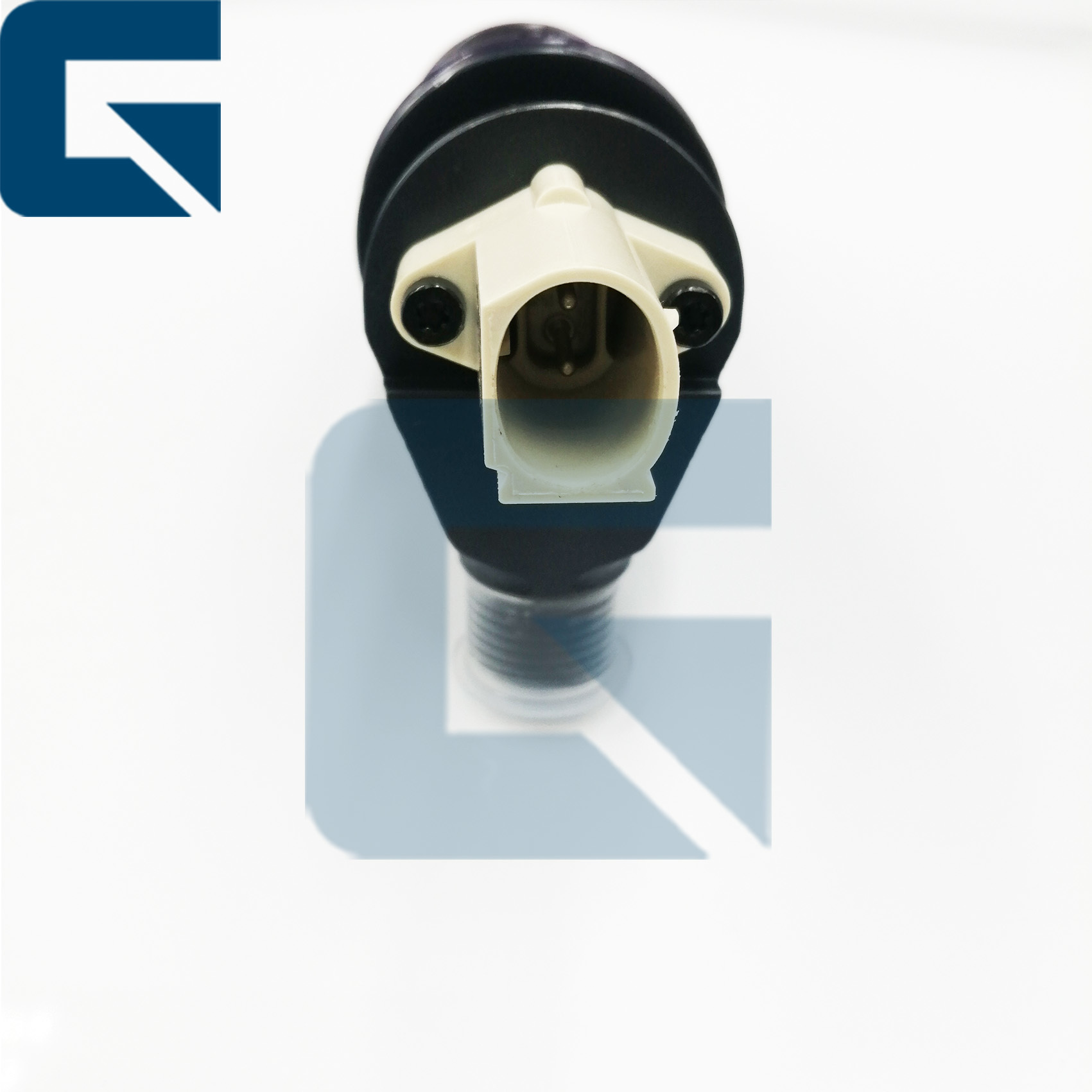

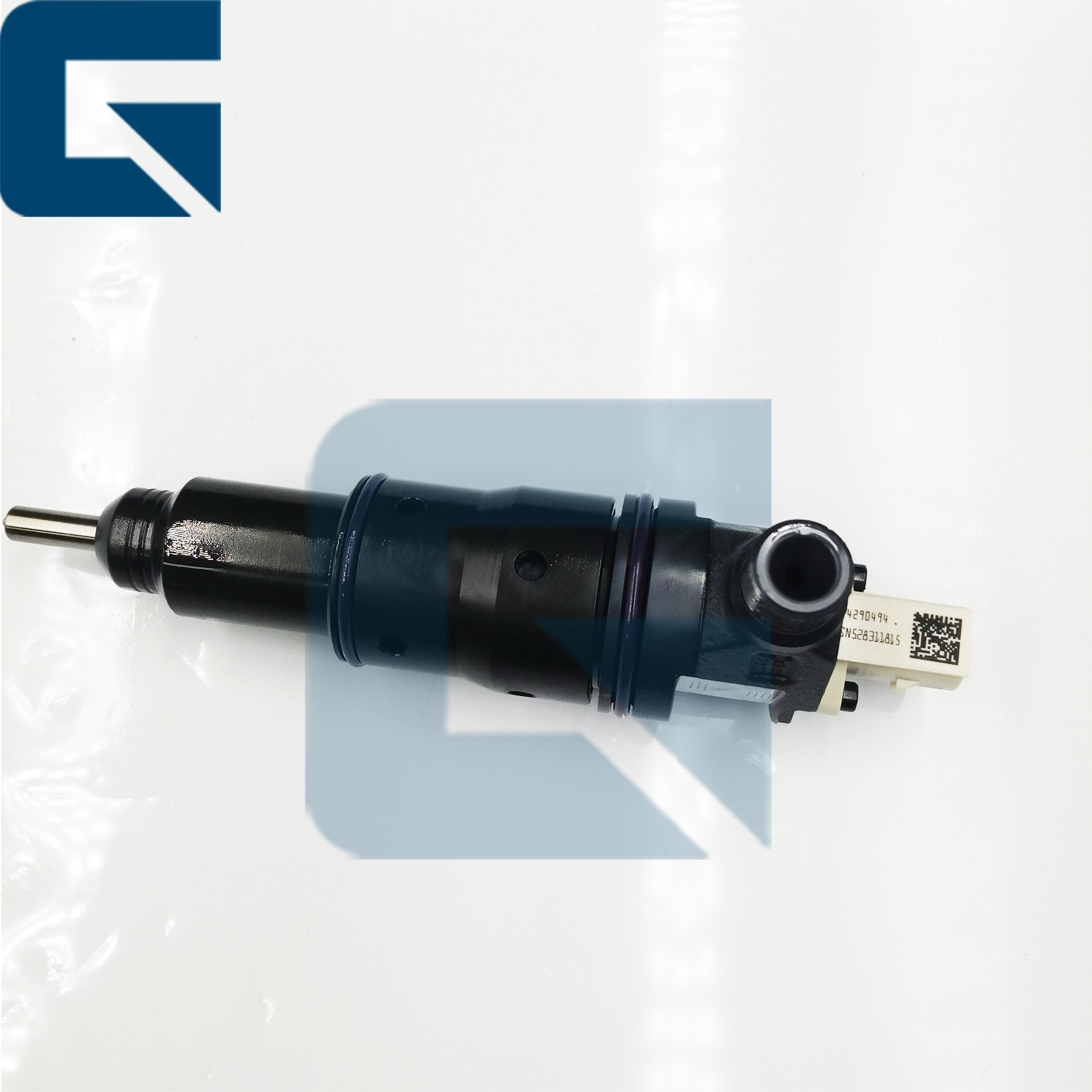

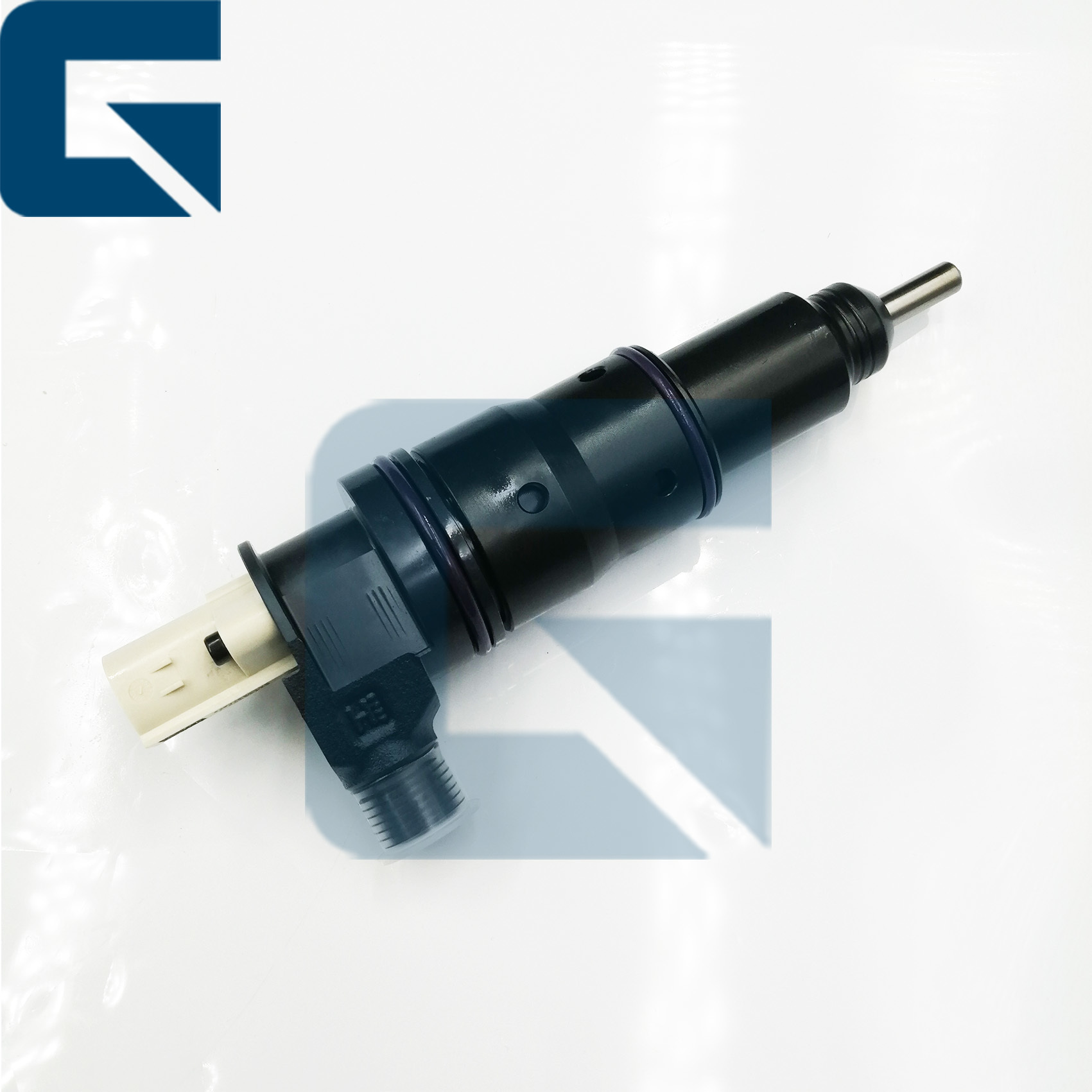

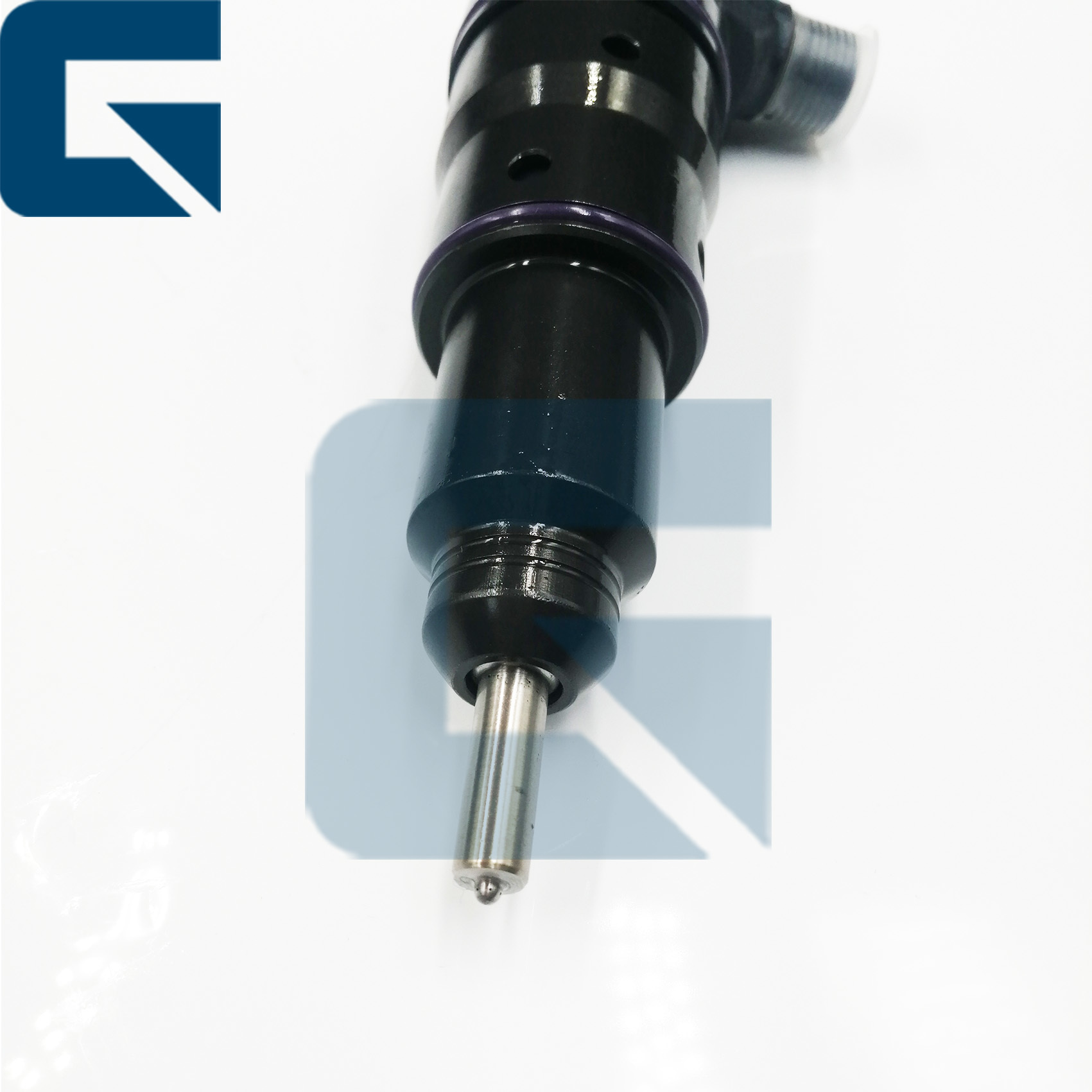

Product Photos & Testing

Related Products

Frequently Asked Questions

Q1: How do I install my fuel injector after purchasing it?

Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions for proper injector installation.

Q2: What precautions should I take before installing VOE24290494 fuel injector?

The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; and ensure the O-ring is installed correctly.

Q3: Why is my engine still unusable after replacing the fuel injector?

This is commonly due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.

Q4: Is my device compatible with this part number of fuel injectors?

If unsure about compatibility, please provide your Engine Serial Number (ESN) for free verification.

Q5: How to determine if your fuel injectors need replacing?

Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations
Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup
Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly
Visual Inspection: Check fuel injector nozzles for carbon buildup, blockage, or corrosion

Q6: How long will it take to receive my package after payment?

Delivery time depends on your country, region, and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.

Step-by-Step Installation Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
Lubrication: Apply clean engine oil to the three O-rings and backup rings. Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Note: Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.

Troubleshooting Guide

Issue	Root Cause	Solution
Black Smoke	Poor spray atomization or stuck needle valve causing dripping	Inspect the air filter
Hard Start	Internal leakage in injector causing insufficient starting oil pressure	Inspect injector O-rings and internal seals
Engine Misfire	Faulty solenoid valve coil or worn internal valve components	Inspect wiring harness connections and replace damaged injectors

Company Profile

Exhibition

Factory Environment

Packaging & Shipping

Label:

Tempat asal:	Cina
Nama merek:	JIAJUE
Nomor model:	D13K

Kuantitas min Order:	1
Harga:	Please send mail or WhatsApp
Kemasan rincian:	VOE24290494 24290494 Injektor Bahan Bakar Diesel untuk Suku Cadang Mesin D13K Dikemas dalam kemasan
Waktu pengiriman:	1 hari kerja
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union,
Menyediakan kemampuan:	1000 buah/bulan
